Permit Ready Fence Site Plans, Drawn to Your Lot
We draw your proposed fence onto a clean, scaled site plan using county GIS data and satellite imagery. Delivered to your inbox in 24 to 48 hours, ready for your building department or HOA.
See PricingWhat's On Your Fence Site Plan

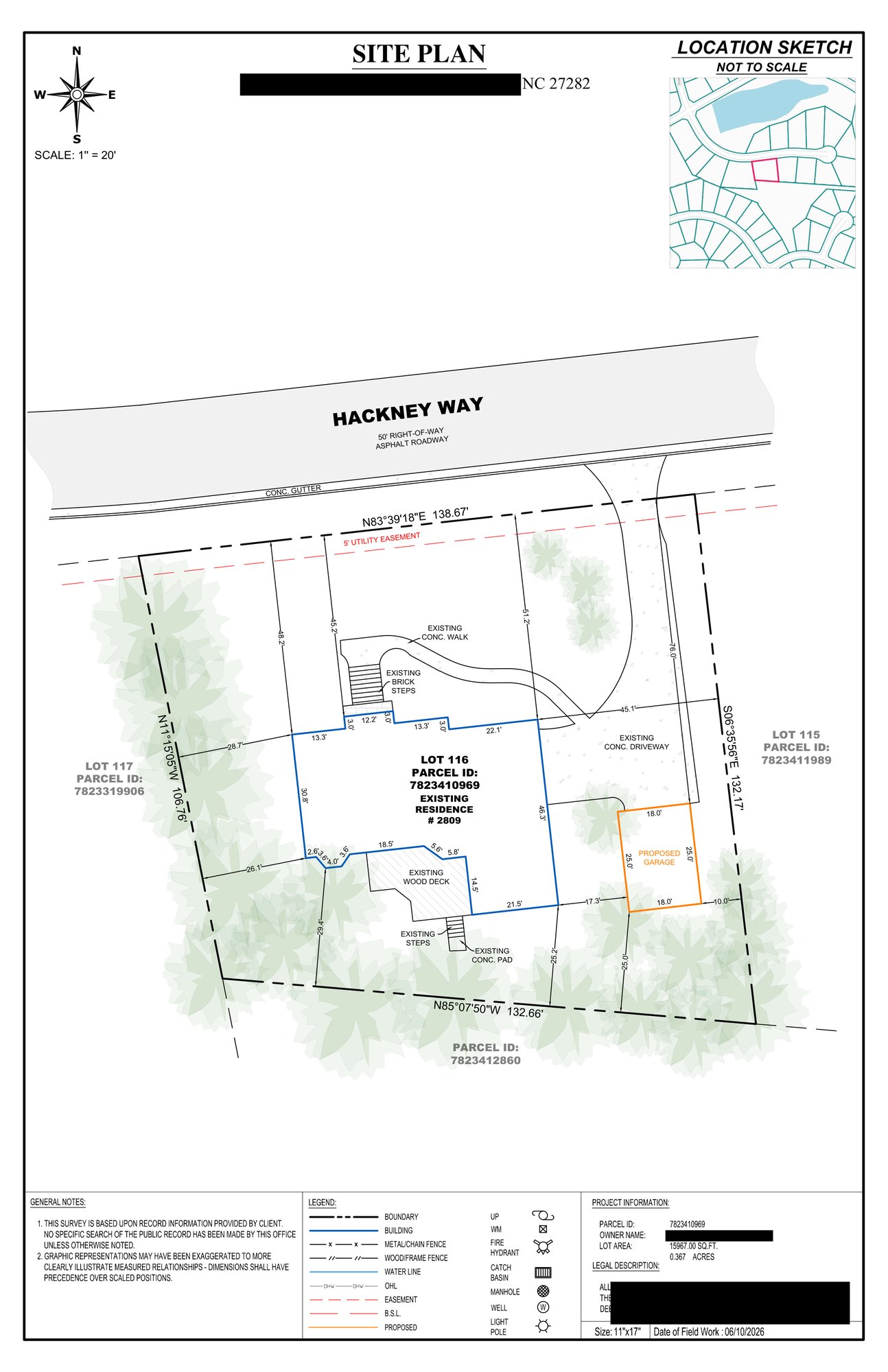

Real fence plans we delivered for permits and HOA submissions. Your proposed fence is drawn along the property lines and dimensioned. Address details redacted.
-
1
Your proposed fence line, drawn to scale. Every run drawn along the property, with height and total length called out the way zoning reviewers and HOAs expect.
-
2
Distance to property lines and corners. Offsets labeled so the reviewer can confirm the fence sits on your side of the line.
-
3
Corner and sight-triangle detail. Where a fence meets a driveway or street corner, we show the clear-sight triangle many cities require.
-
4
Existing structures and boundaries. House, driveway, and any existing fencing plotted from county GIS and verified against aerial imagery.
-
5
Submittal-ready format. Title block, north arrow, scale, and vicinity map on an 11x17 sheet, ready for your permit or HOA packet.
What Your Building Department Checks on a Fence Site Plan
A site plan for a fence permit answers the questions the reviewer must sign off on: where the fence runs, how tall it is, and whether it creates a safety problem. Here is what they look for.
Fence line placement. The fence route drawn along your property lines, showing which sides of the lot it covers. The reviewer checks that the fence sits on or inside your boundary, not your neighbor's.
Height by section. Fence height labeled for each run. Most cities allow taller fences in the back and side yards than in the front, so one number rarely covers the whole fence.
Corner visibility. On corner lots and near driveways, reviewers check that the fence stays out of the sight triangle so drivers can see oncoming traffic and pedestrians.
Gates and openings. Gate locations along the fence line, which matter for emergency access and for pool enclosures.
Pool barrier rules. If the fence encloses a pool or spa, the reviewer applies barrier requirements on top of the normal fence rules, and the plan needs to show the enclosed area clearly.
A clean, scaled drawing with the route, heights, and gates marked answers every one of those checks at a glance. Every fence site plan we deliver is drawn that way. For whether your fence needs a permit at all, see the fence permit rules by state. New to site plans? Start with the complete guide to site plans for permits.
